VertexArray size impacting gl_Vertex value in Vertex shader
« on: December 14, 2022, 01:55:33 pm »
Hi, I'm facing a really weird behavior between VertexArrays and Vertex shader :

Given the same 3 Vertices, a VertexArray doesn't set the same Vertex Shader "gl_Vertex" value depending on the VertexArray size.

For VertexArrays of size 5 upwards, gl_Vertex seems to contain word coordinates (as expected), but for VertexArrays of size up to 4, gl_Vertex seems to contain coordinates centered and aligned with the window.

I've been able to reproduce with a minimal example described bellow BUT in rust-sfml, so maybe the issue lies there... Anyway, I'm thinking if anyone could try to reproduce in native C++ it would be helpfull to corner the issue.

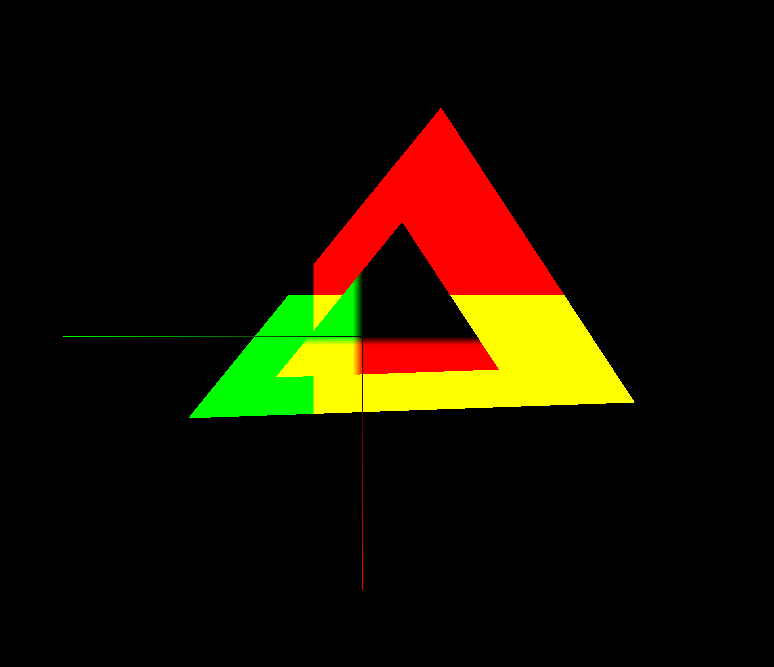

On this image there are three VertexArrays :
- one line strip representing x and y axes (red and green)
- one large triangle, a vertex array declared with size 3
- one small triangle, a vertex array declared with size 5

Both triangles are made of the same coordinates centered on origin, just scaled differently. They are drawn using the same shader.
The render state is translated (diagonal), rotated (90deg) and scaled (x10) to reveal the issue.
The Vertex shader passes the gl_Vertex coordinates to the fragment shader which maps x and y to the gl_FragColor red and green.

As you can see, the small triangle displays coordinates rotated 90deg, still centered on itsef, and the transition between colors is blured on 10 pixels, as expected. The large triangle on the other side displays colors as if no changes were made to the render state.

Thanks for reading and for your help!

Here is the source code if you want to check more things:
Rust :
fn minimal_bug_reproduction() {
    let mut window = RenderWindow::new(
        "Vertex Array issue with shader and gl_Vertex.xy",
    window.set_view(&View::new((0., 0.).into(), Vector2f::new(1500., 1000.)));

    let rotate = |vector: Vector2f, sin_cos: (f32, f32)| {
        let (sin, cos) = sin_cos;
        Vector2f::new( vector.x * cos - vector.y * sin, vector.y * cos + vector.x * sin)

    let shader = Shader::from_file(Some("resources/shaders/dummy_vertex.glsl"), None, Some("resources/shaders/triangle_fragment.glsl"));
    let mut render_state = RenderStates::default();
    render_state.transform.translate(50., 50.);
    render_state.transform.scale(10., 10.);
    render_state.shader = shader.as_ref();

    let mut angle = 0_f32;
    let angle_speed = 0.5_f32;

    let left_pos = Vector2f::new(0., 0.);
    let right_pos = Vector2f::new(0., 0.);

    let mut up_shape = VertexArray::new(PrimitiveType::LineStrip, 3);
    up_shape[0] = Vertex::with_pos_color(Vector2f::new(30., 0.), Color::RED);
    up_shape[1] = Vertex::with_pos_color(Vector2f::new(0., 0.), Color::BLACK);
    up_shape[2] = Vertex::with_pos_color(Vector2f::new(0., 30.), Color::GREEN);

    let size_1 = 20.;
    let mut shape_1 = VertexArray::new(PrimitiveType::Triangles, 3);
    shape_1[0] = Vertex::with_pos(Vector2f::new(-size_1, -size_1) + left_pos);
    shape_1[1] = Vertex::with_pos(Vector2f::new(size_1, -size_1) + left_pos);
    shape_1[2] = Vertex::with_pos(Vector2f::new(0., size_1) + left_pos);

    let size_2 = 10.;
    let mut shape_2 = VertexArray::new(PrimitiveType::Triangles, 5);
    shape_2[0] = Vertex::with_pos(Vector2f::new(-size_2, -size_2) + right_pos);
    shape_2[1] = Vertex::with_pos(Vector2f::new(size_2, -size_2) + right_pos);
    shape_2[2] = Vertex::with_pos(Vector2f::new(0., size_2) + right_pos);

    let mut clock_updates: Clock = Clock::start();
    let mut delta_time_physics: Time = Time::ZERO;
    let mut delta_time_update: Time = Time::ZERO;
    while window.is_open() {
        let delta_time = clock_updates.restart();
        delta_time_physics += delta_time;
        delta_time_update += delta_time;

        while delta_time_physics.as_seconds() >= Game::SIMULATION_TIME_STEP as f32 {
            delta_time_physics -= Time::seconds(Game::SIMULATION_TIME_STEP as f32);
            angle += angle_speed * Game::SIMULATION_TIME_STEP as f32;

            shape_1[0] = Vertex::with_pos(rotate(Vector2f::new(-size_1, -size_1), angle.sin_cos()) + left_pos);
            shape_1[1] = Vertex::with_pos(rotate(Vector2f::new(size_1, -size_1), angle.sin_cos()) + left_pos);
            shape_1[2] = Vertex::with_pos(rotate(Vector2f::new(0., size_1), angle.sin_cos()) + left_pos);

            shape_2[0] = Vertex::with_pos(rotate(Vector2f::new(-size_2, -size_2), angle.sin_cos()) + right_pos);
            shape_2[1] = Vertex::with_pos(rotate(Vector2f::new(size_2, -size_2), angle.sin_cos()) + right_pos);
            shape_2[2] = Vertex::with_pos(rotate(Vector2f::new(0., size_2), angle.sin_cos()) + right_pos);

        while let Some(event) = window.poll_event() {
            match event {
                Event::Closed => window.close(),
                Event::KeyPressed { code: Key::Escape, .. } => window.close(),
                _ => {}

        window.draw_vertex_array(&shape_1, render_state);
        window.draw_vertex_array(&shape_2, render_state);
        render_state.shader = None;
        window.draw_vertex_array(&up_shape, render_state);
        render_state.shader = shader.as_ref();
vertex glsl:
#version 120

varying vec2 io_world_position;

void main() {
    // transform the vertex position
    gl_Position = gl_ModelViewProjectionMatrix * gl_Vertex;
    io_world_position = gl_Vertex.xy;

    // transform the texture coordinates
    gl_TexCoord[0] = gl_TextureMatrix[0] * gl_MultiTexCoord0;

    // forward the vertex color
    gl_FrontColor = vec4(gl_Vertex.xy,0.,1.);
fragment glsl:
#version 120

varying vec2 io_world_position;

void main() {
    gl_FragColor = vec4(io_world_position, 0., alpha);
« Last Edit: December 14, 2022, 03:16:59 pm by Tyrendel »


  • Sr. Member
  • ****
  • Posts: 478
  • Buns.
    • View Profile
    • Trederia
Re: VertexArray size impacting gl_Vertex value in Vertex shader
« Reply #1 on: December 14, 2022, 02:17:51 pm »
This is an SFML optimisation - if a drawable has four or fewer vertices then the positions are pretransformed to world-view coordinates, and the model-view matrix is set to an identity. I came across this when working with a lighting shader and the inverse of the model-view matrix wasn't giving me what I expected.


  • Newbie
  • *
  • Posts: 10
    • View Profile
Re: VertexArray size impacting gl_Vertex value in Vertex shader
« Reply #2 on: December 14, 2022, 03:22:43 pm »
Thanks for the quick answer!

How did you work around the issue? I'm thinking to let the VertexArray declared with 5 Vertices though I find it quite a dirty solution...  :)


  • Sr. Member
  • ****
  • Posts: 478
  • Buns.
    • View Profile
    • Trederia
Re: VertexArray size impacting gl_Vertex value in Vertex shader
« Reply #3 on: December 14, 2022, 05:21:16 pm »
To be honest that's probably the best work around you'll get. For a while I supplied my own set of matrices to the vertex shader (and did my own funky 3D things with it) but then decided if I was going to put in that much work I might as well just switch to pure OpenGL. Credit to SFML though, I wouldn't have learned enough about OpenGL without it  ;D
